Swing‑Mast & Articulating Forklifts – Electric & LPG | 3,000–5,500 lb | VNA Narrow‑Aisle | CSA‑Certified | Brampton ON
Specifications
| Condition | Used |
| Stock Number | CAT‑VNA‑00003 |
| Supported Manufacturers | Raymond, Aisle‑Master, Combilift, Bendi, Drexel, Toyota, Hyster, Yale |
| Capacity | 3000-5500 LBS lbs |
| Mast Spec | 80"-300" |
| Battery & Charger | Electric 36V/48V options available. Battery & charger packages offered based on runtime requirements. LPG models also available. |
| Primary Equipment Class | Swing Mast & Articulating Forklifts (Man‑Down Turret Style) |
| Certifications | CSA‑Inspected • CSA‑Certified • Documentation Provided • Freezer‑Rated Electric Options Available |
| Service Area | Ontario (GTA), Canada‑Wide, U.S. Export, Caribbean Export, CSA‑Regulated Markets |
| Power Options | Electric (36V/48V) • LPG |
| Category Specifications (Range) | Capacity: 3,000–5,500 lb • Mast heights: 80"–300" • Fork lengths: 36" / 42" / 48" • Extensions: 60" / 72" / 84" / 96" • Steering: swing‑carriage or articulating front end • Power: electric or LPG • Tire types: cushion, solid pneumatic, non‑marking • Applications: VNA aisles, high‑bay racking, selective & deep storage • Operational priority: maximize storage density, reduce aisle width, improve pallet access from multiple angles |
| Category Overview Title | Swing‑Mast & Articulating Forklifts – High‑Efficiency VNA Narrow‑Aisle Handling |
| Category Overview Summary | Swing‑mast and articulating forklifts are engineered for VNA warehouse operations where traditional reach trucks cannot maneuver. Their ability to access pallets from the left, right, or straight ahead — without turning the chassis — allows facilities to reduce aisle widths, increase storage density, and improve operator efficiency. With electric and LPG power options, 3,000–5,500 lb capacities, and mast heights up to 300”, these units support high‑bay racking, selective and deep storage, and multi‑directional pallet handling across 3PL, cold storage, manufacturing, and distribution environments. |
Description

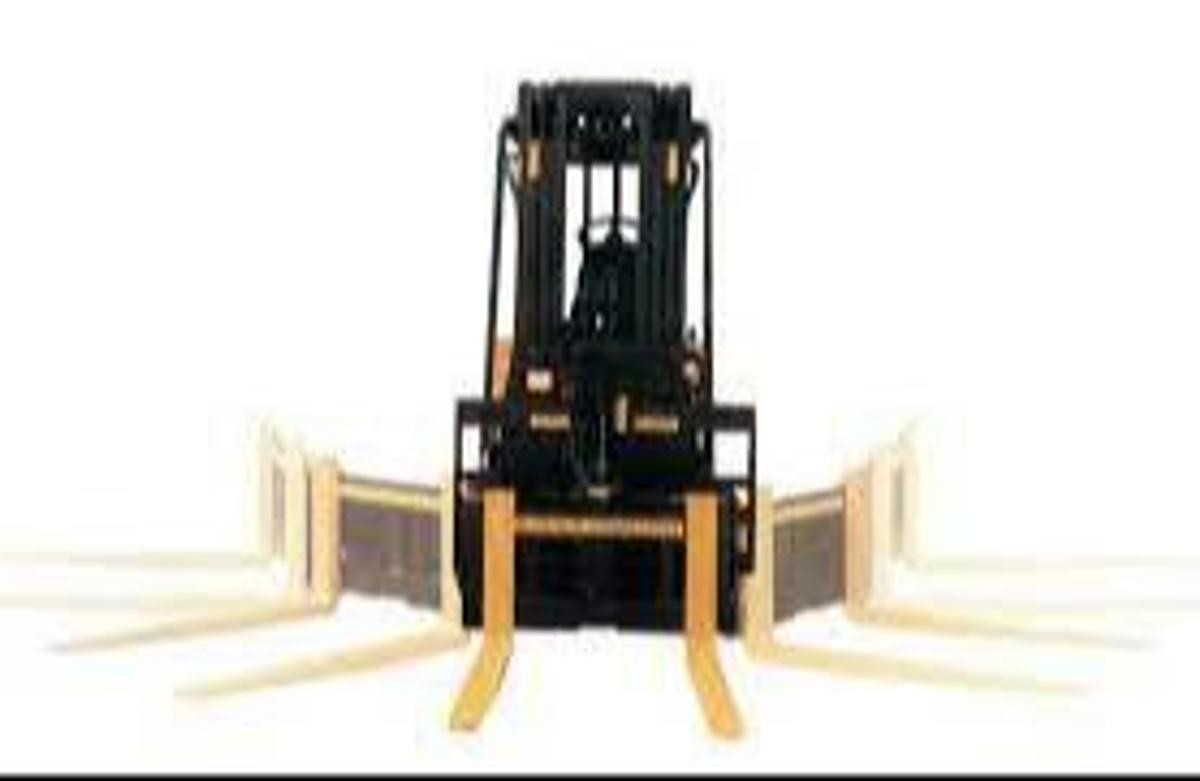

Swing‑mast and articulating forklifts are purpose‑built for VNA warehouse operations where traditional reach trucks cannot maneuver. Their ability to access pallets from the left, right, or straight ahead — without turning the chassis — allows facilities to reduce aisle widths, increase storage density, and improve operator efficiency.
Premier Lift Equipment supplies CSA‑certified swing‑mast and articulating forklifts from Raymond, Aisle‑Master, Combilift, Bendi, Drexel, Toyota, Hyster, and Yale. Each unit is fully inspected, documentation‑ready, and available in electric or LPG configurations for indoor, mixed‑use, or cold‑storage environments.
Whether you’re converting to VNA aisles, expanding high‑bay storage, or replacing aging reach trucks, these forklifts deliver the maneuverability, lift height, and pallet access required for high‑density warehouse operations.
CATEGORY SPECIFICATIONS (RANGE)
(Machinio‑compatible — keep as your primary spec tab)
- Supported Manufacturers: Raymond, Aisle‑Master, Combilift, Bendi, Drexel, Toyota, Hyster, Yale
- Capacity Range: 3,000–5,500 lb
- Mast Heights: 80”–300”
- Fork Lengths: 36” / 42” / 48”
- Extensions: 60” / 72” / 84” / 96”
- Power Options: Electric (36V/48V) or LPG
- Steering: Swing‑carriage or articulating front end
- Tire Types: Cushion, solid pneumatic, non‑marking
- Applications: VNA aisles, high‑bay racking, selective & deep storage
- Operational Priority: Maximize storage density, reduce aisle width, improve pallet access
- Certification: CSA‑Inspected / CSA‑Certified
- Service Area: Ontario (GTA), Canada‑Wide, U.S. Export, Caribbean Export
IDEAL APPLICATIONS
- E‑Commerce Fulfillment Forklifts | Premier Lift
- CSA Forklifts for Food & Beverage Distribution
- CSA Forklift Service | Cold Storage GTA & Export
- Pharma & Medical Forklifts – CSA Certified GTA
- CSA Forklift Service | 3PL Warehousing GTA & Export
BATTERY & CHARGER OPTIONS
Electric swing‑mast and articulating forklifts can be equipped with:
- 36V / 48V industrial batteries
- Lithium battery upgrades
- Conventional, opportunity, and fast‑charge systems
- Battery watering systems
- Charger wall‑mount kits
- Load‑testing and connector matching
- CSA/MOL‑compliant power packages
View compatible forklift chargers
PARTS & LIFECYCLE SUPPORT
Premier Lift supports all major swing‑mast and articulating forklift platforms with:
- Swing‑carriage components
- Articulating mast assemblies
- Steering actuators & sensors
- Electric drive motors & controllers
- Industrial batteries & chargers
- OEM & aftermarket forks, tires, and load wheels
- CSA/MOL inspection tagging
- Freezer‑rated upgrades
- Magnaflux testing for export
- Full refinishing & paint booth
Next steps
- Request CSA Inspection
- Ask About Rentals
- Book Driver Training
- Trade In Your Forklift
- Watch Premier Forklifts in Action
FAQ — Swing Mast & Articulating Forklifts
What are swing‑mast and articulating forklifts?
VNA forklifts engineered to access pallets from multiple angles without turning the chassis.
What’s the difference between swing‑mast and articulating forklifts?
Swing‑mast units rotate the mast; articulating units pivot the entire front end.
How narrow can these forklifts operate?
Most models operate in 6–7 ft aisles, depending on load size and mast height.
Are they suitable for high‑bay racking?
Yes — they excel in selective, deep‑reach, and high‑bay racking environments.
Do they replace man‑up turret trucks?
They bridge the gap — offering VNA performance without the cost or complexity of full turret systems.
Are electric and LPG options available?
Yes — electric for indoor/cold storage; LPG for multi‑shift or mixed‑use operations.
Are CSA‑certified units available?
Yes — all units can be delivered fully CSA B335 compliant.
Which brands manufacture these forklifts? Supported Brands
Raymond • Aisle‑Master • Combilift • Bendi • Drexel • Toyota • Hyster • Yale
CSA‑Approved Equipment
All units can be CSA‑inspected, CSA‑certified, and delivered with full compliance documentation. Equipment can be matched to your facility’s aisle width, racking design, and operational requirements.
