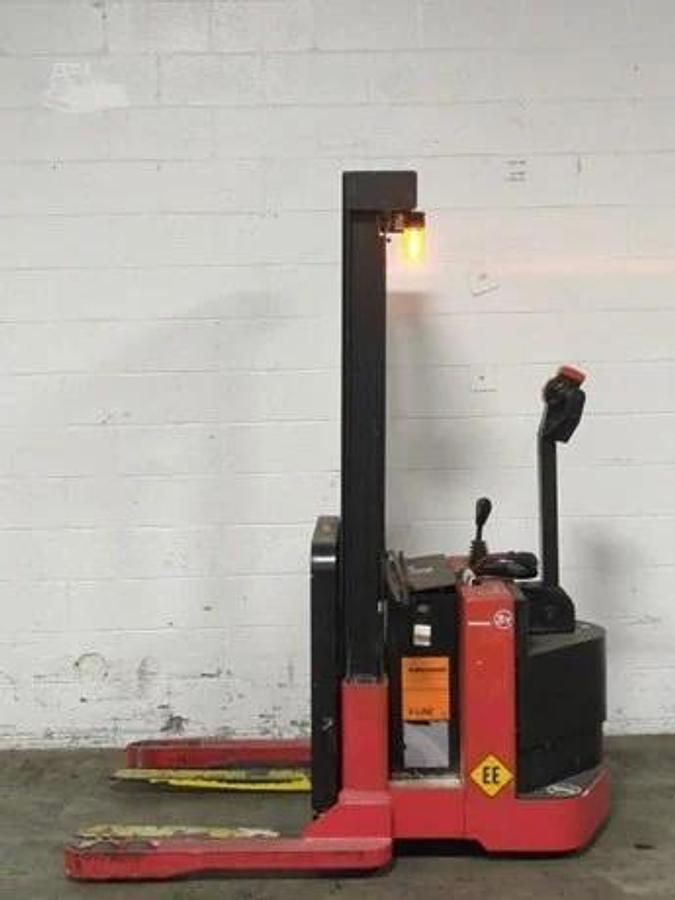

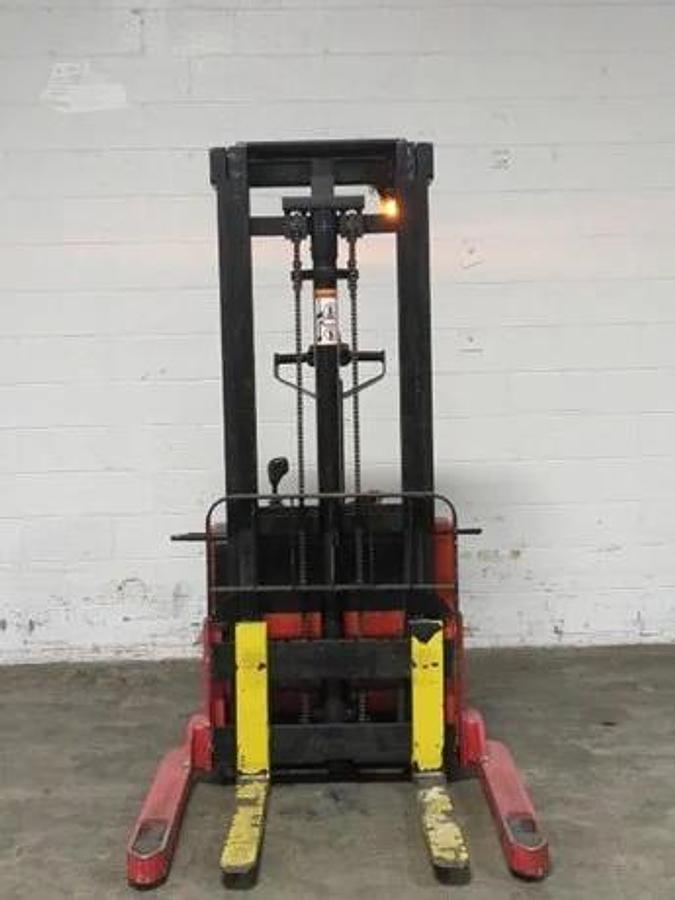

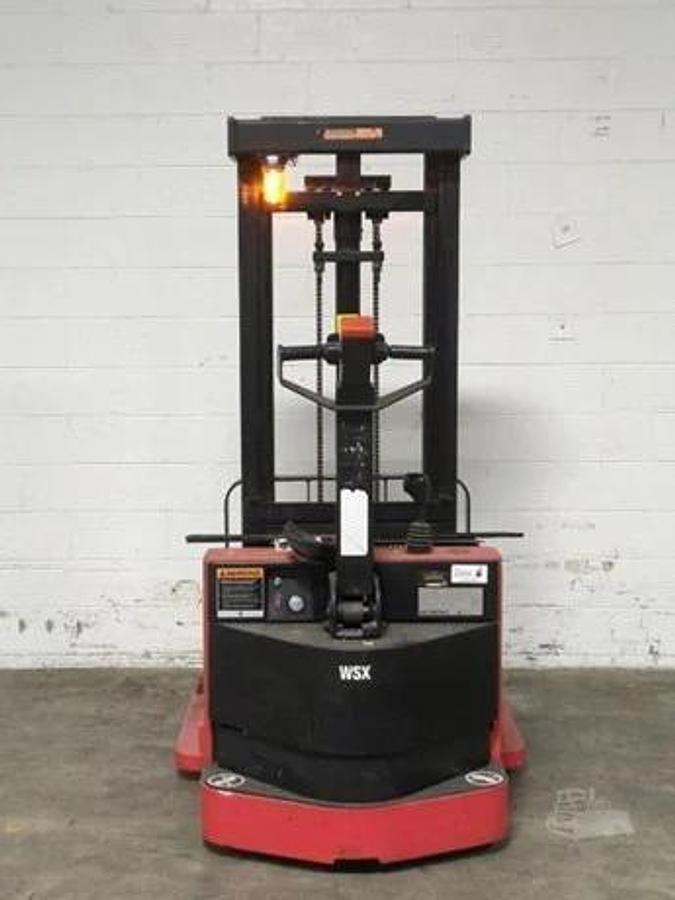

BT Prime Mover WSX22 — EE‑Rated Walkie Stacker — 128” Lift — CSA Ready — 428 Hours

Specifications
| Manufacturer | BT Prime Mover |
| Model | WSX22 |
| Condition | Refurbished |
| Part ID | 5951811 |
| Capacity | 2200 lbs |
| Fuel Type | Electric |
| Load Center | 24" |
| Raised Mast Height | 128 in |
| Lowered Mast Height | 85 in |
| Store Code | PLE1 |
| Voltage | 24V |
| Battery Included | Optional |
| Charger Included | Optional |
| Certification | CSA/MOL Certified |
| Tire Type | Polyurethane drive & load wheels |
| Category Overview Title | EE‑Rated Straddle Stackers for Hazardous & Controlled Environments |
| Category Overview Summary | EE‑rated straddle stackers are purpose‑built for hazardous and controlled environments where standard electric equipment cannot operate safely. With fully enclosed electrical systems, sealed components, and CSA/MOL certification available, these units deliver compliant, reliable vertical lifting in chemical plants, pharmaceutical production, food‑grade facilities, and combustible‑dust zones. Their compact footprint and straddle‑leg design make them ideal for narrow‑aisle pallet handling, light‑duty stacking, and regulated warehouse operations requiring maximum safety and precision. |
Description
EE‑rated BT Prime Mover WSX22 walkie stacker with 2,200 lb capacity, 128” lift height, and only 428.7 hours. Fully CSA B335:25 inspected, 2‑stage mast, 30” forks, and 45.25” base‑leg opening. Ideal for hazard‑rated warehouse environments across the GTA.
This BT Prime Mover WSX22 EE‑Rated Walkie Stacker is fully serviced, inspected, and ready for deployment in high‑density warehouse operations requiring hazard‑rated (EE) equipment. With only 428.7 hours, this unit is in excellent operational condition and meets all CSA B335:25 safety requirements.
The WSX22 series is known for its compact footprint, strong lift performance, and sealed electrical components suitable for EE‑rated environments. This unit features a 2‑stage mast, 128” lift height, 85” lowered height, and 30” forks — ideal for narrow‑aisle storage and pallet handling.
Delivered fully serviced from our 99 West Dr., Brampton facility.
Ideal Applications
- Chemical processing plants requiring enclosed electrical systems for safe pallet handling
- Pharmaceutical manufacturing with strict contamination‑control and hazard‑zone requirements
- Food‑grade and cleanroom environments where sealed components prevent ignition and contamination
- Combustible‑dust facilities such as milling, packaging, and powdered‑material operations
- Cosmetics and personal‑care production with volatile compounds and controlled atmospheres
- Paint, coatings, and adhesives manufacturing where vapors require EE‑rated equipment
- Hazardous‑zone warehousing with flammable materials or controlled‑environment storage
- Tight or narrow‑aisle storage areas where sit‑down forklifts cannot operate
- Light‑duty pallet handling in regulated or safety‑critical environments
- Facilities undergoing CSA/MOL audits requiring compliant electric lifting equipment
Parts & Lifecycle Support
- CSA/MOL inspection tagging – decals, brake tags, logbooks
- LED lighting kits, comfort mats, backup alarms
- Charger diagnostics & pairing – matched kits available
- Freezer-rated battery bundles – available for cold storage
- Magnaflux testing – resale/export assurance
- Export documentation & freight prep
Premier Lift Support Ecosystem
- CSA Forklift Safety Accessories & PPE
- Service & Repair
- Rentals
- Driver Training & Certification
- Book a Service
- Rental Request Form
- Watch Premier Forklifts in Action
Premier Lift Equipment supports your entire operation—not just the forklift:
- CSA/MOL Certification & Inspection
- Battery & Charger Packages – New or tested used
- Safety Accessories – Mirrors, dock chocks, decals, logbooks
- Mobile Field Service – Brampton Mississauga, Vaughan, Oakville, Toronto
- Operator Training – CSA-compliant programs
- Flexible Leasing & Financing (OAC)
- Trade-In Credit – Walkies, propane lifts, or legacy electrics
- Rental Bridge Programs – Keep operations running during transitions
- Magnaflux Testing – Add-on for resale/export assurance
- Full Service Shop & Paint Booth – State‑of‑the‑art refinishing, custom color matching, and full chassis rebuilds performed in‑house at our facility. Every CSA‑certified forklift can be delivered freshly painted, safety decals applied, and ready for front‑line duty.
Next Steps
- Request CSA Inspection
- Ask About Rentals
- Book Driver Training
- Trade In Your Forklift
- Watch Premier Forklifts in Action
FAQ Questions
1. Is this BT Prime Mover WSX22 fully EE‑rated?
Yes. This WSX22 is an EE‑rated walkie stacker with sealed electrical components suitable for hazard‑rated warehouse environments.
2. Does this unit meet CSA B335:25 compliance?
Yes. The unit has been fully inspected at our 99 West Dr. facility and meets all CSA B335:25 safety requirements.
3. How many hours are on this WSX22?
This unit has 428.7 verified operating hours.
4. What is the lift height and lowered height?
It has an 85” lowered height and a 128” maximum lift height with a 2‑stage mast.
5. What is the capacity of the WSX22?
The rated lifting capacity is 2,200 lb.
6. What fork length does this unit have?
This WSX22 is equipped with 30” forks.
7. What is the base‑leg opening?
The base‑leg opening is 45.25”, suitable for standard pallet handling and narrow‑aisle maneuvering.
8. Does the unit come with a battery and charger?
Yes — the battery is load‑tested, and a charger is available. (Specify new/reconditioned if needed.)
9. Is delivery available?
Yes. We deliver across Brampton, Mississauga, Toronto, and the GTA.
10. What type of warehouse environments is this stacker suitable for?
Ideal for food, pharma, packaging, and any facility requiring EE‑rated equipment for hazard‑rated zones.
11. Has the mast, hydraulics, and electrical system been inspected?
Yes. The unit has undergone full mast, hydraulic, and electrical diagnostics as part of our refurbishment process.
12. Can this WSX22 operate in narrow aisles?
Yes. The compact chassis, 30” forks, and 45.25” base‑leg opening make it ideal for narrow‑aisle storage.
13. What year is this WSX22?
The WSX22 series was produced between 1998–2008, with most units falling between 2000–2006.
(If you provide the serial number, I can pinpoint the exact year.)
14. Is this unit ready for immediate deployment?
Yes. It is fully serviced, CSA‑aligned, and ready for warehouse use.
15. Do you offer additional EE‑rated equipment?
Yes — we stock EE‑rated walkies, stackers, reach trucks, and warehouse equipment.
