2002 Raymond EASIDR25TT – CSA‑Certified Deep‑Reach Forklift | 2,500 lb | 205” Triple Mast | 24V Electric | Pantograph Double‑Deep | Brampton ON
Specifications
| Manufacturer | Raymond |
| Model | EASIDR25TT |
| Year | 2002 |
| Condition | Refurbished |

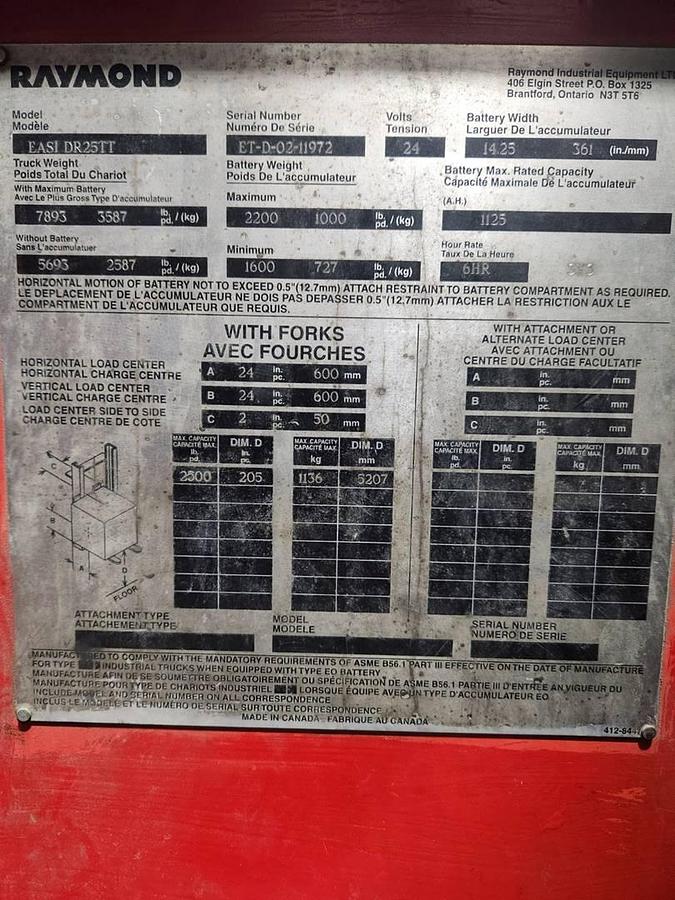

| Serial Number | ETD-D-02-11872 |
| Part ID | 7226 |
| Capacity | 2500 LBS. lbs |
| Load Center | 24" |
| Mast Spec | 95"/204" |
| Raised Mast Height | 204 in |
| Lowered Mast Height | 95 in |
| Mast | Three Stage |
| Power Type | Electric |
| Voltage | 24v |

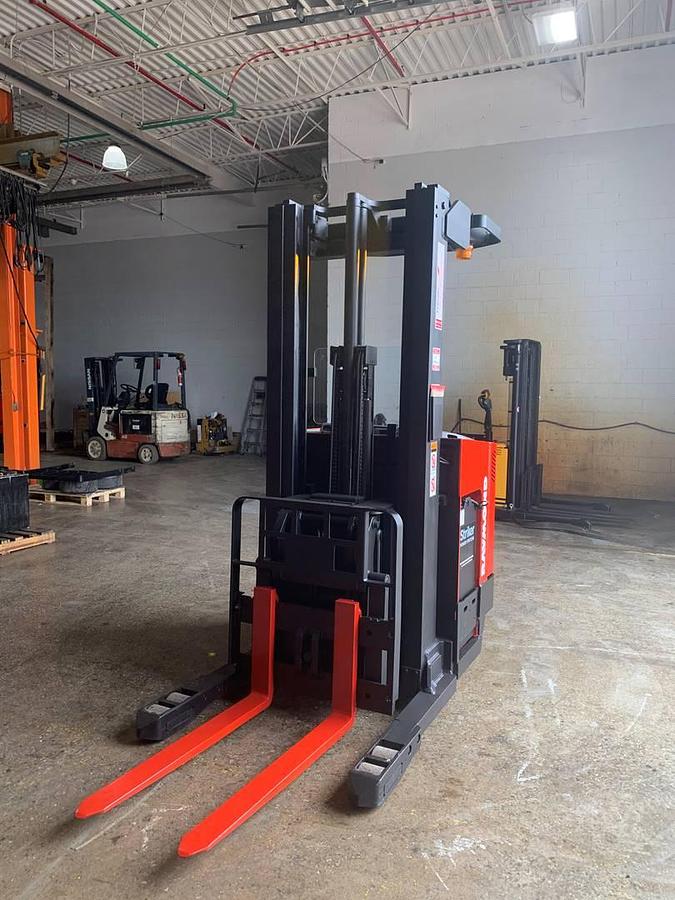

| Reach Mechanism | Deep reach – Pantograph arm |
| Carriage Type | Class II |

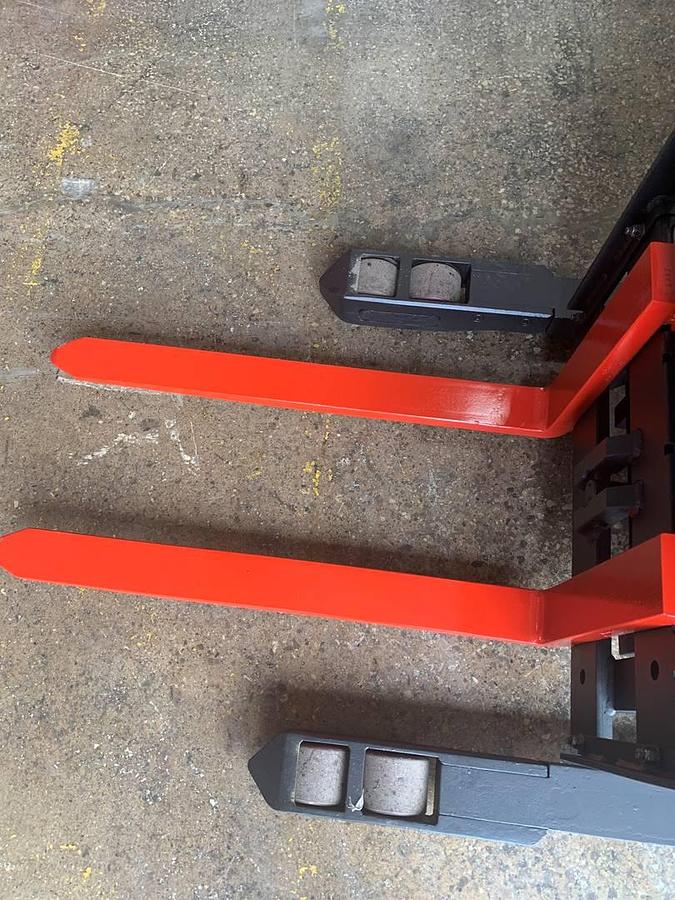

| * Fork Length | 42" |
| * Side Shifter | Yes |
| Baseleg Opening | 41" |
| Overall Width | 42" |
| Overall Length | 97.4" |
| Turning Radius | Narrow‑aisle optimized |
| Travel Speed (Loaded) | Standard Raymond spec |
| Travel Speed (Unloaded) | Standard Raymond spec |
| Tilt Range | Standard reach‑truck tilt |
| Tire Type | Indoor poly cushion |
| Weight (Truck Weight) | 6,874 lb (without battery) |
| Certification | CSA/MOL Certified |
| Battery Compartment Size | Standard Raymond DR compartment |
| Fuel Type | Electric |
| Battery Included | Optional |
| Charger Included | Optional |
| Category Overview Title | Deep‑Reach Forklifts – Double‑Deep High‑Density Storage Solutions |
| Category Overview Summary | Deep‑reach forklifts are engineered for high‑density storage environments using double‑deep racking systems. With pantograph reach mechanisms, 24V/36V/48V electric powertrains, and lift heights up to 330”, these units maximize pallet positions while reducing aisle width requirements. CSA‑certified deep‑reach forklifts excel in 3PL, cold storage, distribution centers, and high‑bay warehouse operations where storage density and precise load placement are essential. |
Description
This CSA‑certified 2002 Raymond EASIDR25TT is a 2,500 lb deep‑reach forklift engineered for narrow‑aisle warehouse operations and double‑deep pallet racking. With a 205” triple‑stage mast, pantograph reach mechanism, and 24V electric system, it delivers reliable performance in high‑density storage environments. Fully reconditioned, repainted, safety‑tagged, and ready for Canadian or export deployment.
POWER OPTIONS (BATTERY & CHARGER)
- Battery: Not included — 24V lead‑acid and reconditioned options available
- Charger: Not included — matched 36V high‑frequency chargers available
- Freezer Options: Freezer‑rated hydraulics and cold‑storage battery packages available
- Pairing: Matched battery/charger sets based on runtime and shift pattern
Forklift Battery Chargers
Ideal Applications
- Cooler zones and refrigerated pick modules
- Grocery, pharma & 3PL fulfillment
- CSA-certified export programs
- Retrofit for aging Raymond DR or Crown RD fleets
- Narrow aisle double-deep racking layouts
Optional Freezer Retrofit
Add-on package includes:
- Low-temp insulation
- Thermal-tuned controls
- CSA freezer seal kit Installed in-house or on-site. Ideal for future upgrades into freezer zones or temperature-controlled DCs.
Parts & Lifecycle Support
- OEM & aftermarket parts – forks, tires, controllers, tillers
- UL/EE fire-safe upgrades – available upon request
- Clamp kits – carton clamp, push/pull, slip sheet
- Freezer cab kits and cold storage battery options
- Charger pairing and diagnostics
- Tire Pressing & Installation – forklift tires, caster wheels, load wheels
- CSA/MOL inspection tagging and documentation
- Magnaflux testing for resale/export assurance
- Parts bundling with unit purchase or lease
Narrow‑Aisle Safety & High‑Bay Visibility This EASIDR25TT is prepared in alignment with CSA B335 narrow‑aisle safety expectations, including visibility optimization, controlled travel‑speed tuning, and operator‑zone protection for high‑bay storage. Freezer‑rated wiring, hydraulic seals, and mast‑lubrication protocols support cold‑storage environments down to –30°C. Battery‑room ventilation, charger matching, and multi‑shift energy planning are available for facilities running 24/7 electric fleets.
Premier Lift Support Ecosystem
- CSA Forklift Safety Accessories & PPE
- Service & Repair
- Rentals
- Driver Training & Certification
- Book a Service
- Rental Request Form
- Watch Premier Forklifts in Action
Premier Lift Equipment supports your entire operation—not just the forklift:
- CSA/MOL Certification & Inspection
- Battery & Charger Packages – New or tested used
- Safety Accessories – Mirrors, dock chocks, decals, logbooks
- Mobile Field Service – Mississauga, Vaughan, Oakville, Toronto
- Operator Training – CSA-compliant programs
- Flexible Leasing & Financing (OAC)
- Trade-In Credit – Walkies, propane lifts, or legacy electrics
- Rental Bridge Programs – Keep operations running during transitions
- Magnaflux Testing – Add-on for resale/export assurance
- Full Service Shop & Paint Booth – State‑of‑the‑art refinishing, custom color matching, and full chassis rebuilds performed in‑house at our facility. Every CSA‑certified forklift can be delivered freshly painted, safety decals applied, and ready for front‑line duty.
Next Steps
- Request CSA Inspection
- Ask About Rentals
- Book Driver Training
- Trade In Your Forklift
- Watch Premier Forklifts in Action
Industry Applications
Cold storage & frozen food distribution
Grocery, retail & big‑box distribution centers
3PL warehousing & cross‑dock logistics
Pharmaceutical & medical distribution
Beverage & alcohol distribution
Manufacturing & light industrial operations
Aerospace & precision parts handling
Clean‑energy & renewables facilities
Data centers & critical‑infrastructure environments
Recycling & waste‑management operations
Frequently Asked Questions – Raymond EASIDR25TT
Does this unit include a battery?
No — battery and charger are optional.
Is it CSA certified?
Yes — fully CSA/MOL inspected and tagged.
Is it freezer‑compatible?
Yes — freezer‑rated upgrades available.
Is it suitable for low‑clearance grocery racking?
Yes — 95" collapsed height fits tight indoor layouts.
Do you offer trade‑ins?
Yes — propane, walkies, and electrics accepted.
Is Magnaflux testing available?
Yes — recommended for export assurance.
