Refurbished 2021 Raymond 731-4D-R45TT Four-Directional Forklift
Specifications
| Manufacturer | Raymond |
| Model | 731‑4D‑R45TT |
| Year | 2021 |
| Condition | Refurbished |
| Part ID | 5951696 |
| Capacity | 4500 lbs |
| Raised Mast Height | 211 in |
| Lowered Mast Height | 95 in |
| Fuel Type | Electric |
| * Side Shifter | No |
| Hours | 9700 |
| Tire Type | Polyurethane (Indoor) |
| Battery Included | Optional |
| Charger Included | Optional |
| Battery Compartment Width | 16" |
| * Fork Length | 42" |
| Certification | CSA B335-15 & Ontario MOL Safety Certified |
| Category Overview Title | 4‑Directional Electric Reach Trucks – Multi‑Directional Handling for Long Loads & Narrow Aisles |
| Category Overview Summary | 4‑Directional reach trucks are engineered for handling long loads, navigating tight aisles, and operating in environments where traditional reach trucks cannot maneuver efficiently. With multi‑directional travel, triple‑stage masts, and electric precision, they excel in manufacturing, steel, lumber, extrusion, and warehouse operations requiring lateral movement. Premier Lift supplies CSA‑certified 4‑directional trucks configured for indoor fleets, long‑load handling, and export‑ready deployments. |
Description
2026 VNA Turret Trucks & High-Lift Solutions | Maximize Warehouse Density | CSA/MOL Certified | Professional On-Site Setup.
The 2021 Raymond 731‑4D‑R45TT is a four‑directional electric forklift built for long‑load handling and narrow‑aisle storage. It features a 4,500 lb capacity, 95/211” triple‑stage mast, 55” baseleg opening, and 48” forks. Fully refurbished, repainted, and CSA/MOL certified, this unit is delivered ready for indoor industrial and VNA applications.
Raymond 731‑4D‑R45TT four‑directional electric forklift with 4,500 lb capacity, 95/211” mast, 55” baseleg opening, and 48” forks. Fully refurbished, repainted, and CSA/MOL certified for long‑load handling and narrow‑aisle warehouse environments. Ideal for steel, lumber, pipe, extrusion, and VNA storage. Battery and charger packages available.
Refurbishment Work Completed
- Full mechanical inspection and operational testing
- Mast, hydraulics, and lift chains inspected and adjusted
- Drive, steer, and lift functions tested under load
- Complete chassis refinishing and repainting
- Safety decals and compliance labeling applied
- CSA/MOL certification included
- Export‑ready documentation available
What’s Included

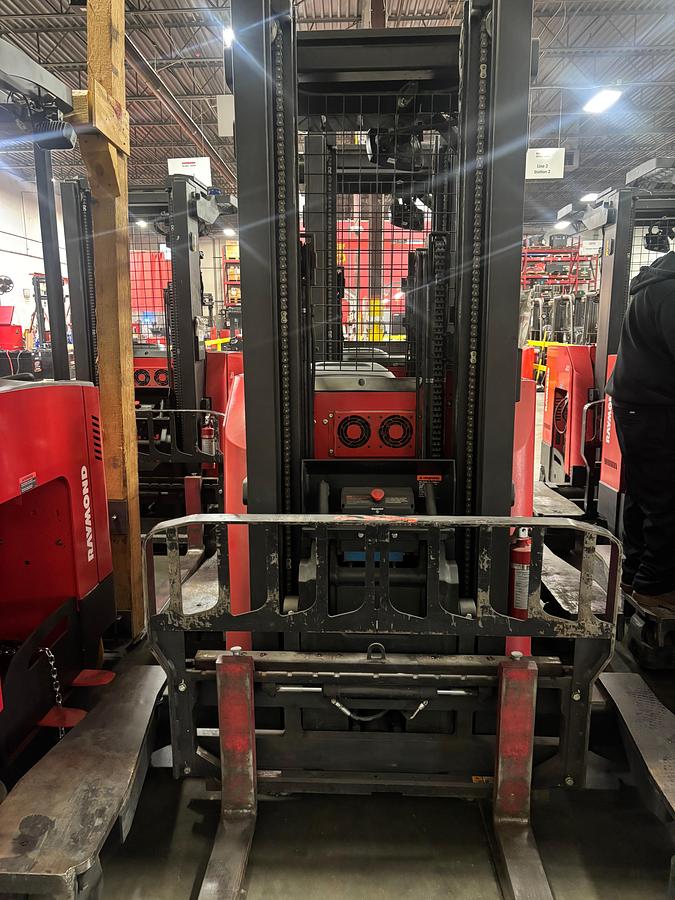

- 95/211” triple‑stage mast
- Four‑directional travel (forward, reverse, left, right)
- 48” forks

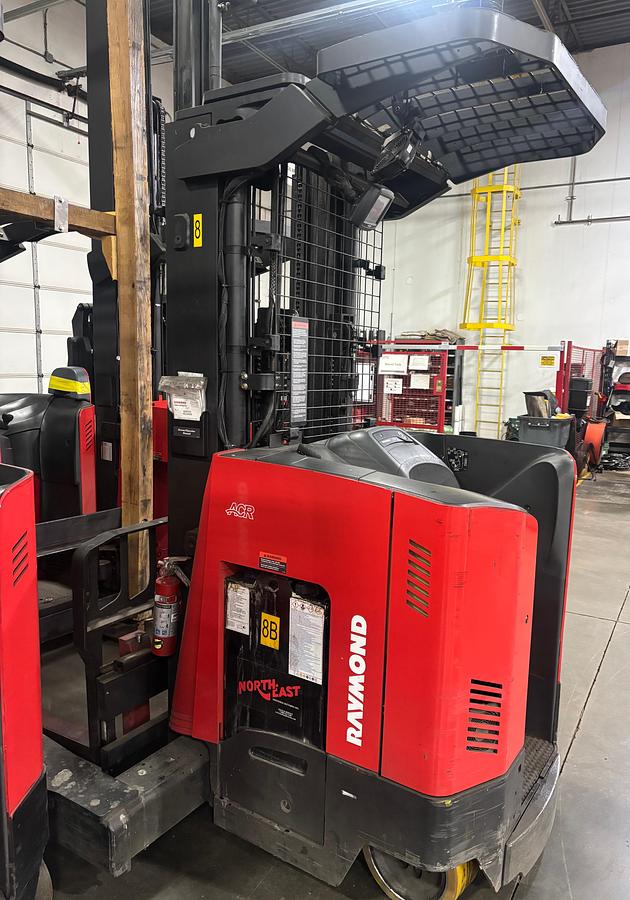

- 55” baseleg opening
- Stand‑up operator compartment
- Poly indoor tires
- Delivery across Canada and the United States
- CSA/MOL certification
- Brampton‑based deployment and support
Ideal Applications
- Lumber yards and steel pipe handling
- Warehouse long load storage
- CSA/MOL regulated indoor/outdoor operations
- Export-ready fleets
- Institutional distribution centers
Parts & Lifecycle Support
- OEM & aftermarket parts – forks, tires, controllers, tillers
- UL/EE fire-safe upgrades – available upon request
- Freezer cab kits and cold storage battery options
- Charger pairing and diagnostics
- Tire Pressing & Installation – forklift tires, caster wheels, load wheels
- CSA/MOL inspection tagging and documentation
- Magnaflux testing for resale/export assurance
- Parts bundling with unit purchase or lease
Premier Lift Support Ecosystem
- CSA Forklift Safety Accessories & PPE
- Service & Repair
- Rentals
- Driver Training & Certification
- Book a Service
- Rental Request Form
- Watch Premier Forklifts in Action
Premier Lift Equipment supports your entire operation—not just the forklift:
- CSA/MOL Certification & Inspection
- Battery & Charger Packages – New or tested used
- Safety Accessories – Mirrors, dock chocks, decals, logbooks
- Mobile Field Service – Mississauga, Vaughan, Oakville, Toronto
- Operator Training – CSA-compliant programs
- Flexible Leasing & Financing (OAC)
- Trade-In Credit – Walkies, propane lifts, or legacy electrics
- Rental Bridge Programs – Keep operations running during transitions
- Magnaflux Testing – Add-on for resale/export assurance
- Full Service Shop & Paint Booth – State‑of‑the‑art refinishing, custom color matching, and full chassis rebuilds performed in‑house at our facility. Every CSA‑certified forklift can be delivered freshly painted, safety decals applied, and ready for front‑line duty.
Next Steps
- Request CSA Inspection
- Ask About Rentals
- Book Driver Training
- Trade In Your Forklift
- Watch Premier Forklifts in Action
FAQ Questions
Is this forklift fully refurbished and CSA/MOL certified?
Yes. The unit is professionally refurbished, repainted, safety‑tagged, and certified to CSA B335:25 and Ontario MOL/MLITSD standards. It is delivered ready for indoor industrial use, VNA environments, and long‑load handling applications requiring compliant electric equipment.
What makes a four‑directional forklift different from a reach truck or counterbalance?
Four‑directional forklifts can travel forward, reverse, and laterally left/right without turning. This allows operators to move long loads—steel, lumber, pipe, extrusion—through narrow aisles where standard reach trucks or counterbalance forklifts cannot maneuver safely or efficiently.
Is this model suitable for long‑load handling?
Yes. The 55” baseleg opening, slab chassis, and four‑way steering system are engineered specifically for long‑load materials. This configuration is ideal for steel fabrication, millwork, extrusion plants, and any warehouse storing oversized pallets or bundles.
Does the forklift come with a battery and charger?
No. This listing is chassis‑only. Premier Lift offers compatible 36V industrial batteries, lithium upgrades, and smart chargers as optional packages. Battery health reports and charger pairing support are available.
What aisle width does this forklift require?
Four‑directional Raymond trucks are designed for very narrow aisle (VNA) environments. Typical operating aisles range from 7–9 feet depending on load length, turning clearance, and rack configuration.
Can this forklift be exported to the U.S. or Caribbean?
Yes. The unit is export‑ready, and documentation can be prepared for U.S. CUSMA/USMCA duty‑free entry or Caribbean shipments. Magnaflux testing and compliance paperwork are available for buyers requiring additional verification.
How many hours are on this unit, and are they verified?
The forklift shows approximately 9,697 hours. Deadman hours and operational logs are verified during intake, and all critical components are inspected during refurbishment.
What industries typically use four‑directional forklifts?
These units are common in steel service centers, lumber yards, extrusion plants, manufacturing lines, aerospace facilities, and any warehouse storing long or oversized materials. They are also used in high‑density VNA storage systems.
What maintenance support is available after purchase?
Premier Lift provides full lifecycle support including CSA inspections, parts sourcing, battery/charger service, tire pressing, operator training, and mobile field service across the GTA and surrounding regions.
Can this forklift replace a sideloader?
Yes. Many buyers use four‑directional Raymond trucks as a modern, electric alternative to traditional sideloaders. They offer better maneuverability, lower operating costs, and improved indoor air quality.
